Description

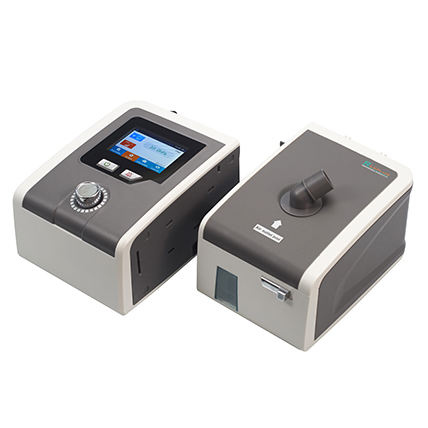

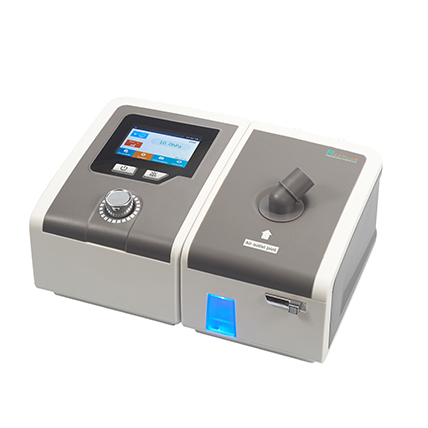

ResPlus series CPAP machine is our second generation CPAP Device. Its working mode includes CPAP, APAP, S, S/T, T, APCV, AND Auto B, and the color consists of gray white and black gray. The screen adopts 3.5" TFT LCD display.




















Specification of ResPlus Series CPAP Machine

Name	CPAP			BIPAP
Model	C-20C	C-20A		B-20S			B-20A		B-20T	B-25S			B-25A		B-25T		B-25P			B-30S		B-30A		B-30T		B-30P
Color	Gray white			Black gray
Screen	3.5" TFT LCD display
Working mode
CPAP	√	√		√			√		√	√			√		√			√		√		√		√		√
APAP		√					-		-				-		-			-				-		-		-
S	-	-		√			√		√	√			√		√			√		√		√		√		√
S/T	-	-		-			-		√	-			-		√			√		-		-		√		√
T	-	-		-			-		√	-			-		√			√		-		-		√		√
APCV	-	-		-			-		-	-			-		-			√		-		-		-		√
Auto B	-	-		-			√		-	-			√		-			-		-		√		-		-
Weight ( host+humidifier)	With humidifier: 2.2kg Without humidifier: 1.2kg
Dimension	With humidifier: 280mm×200mm×112mm Without humidifier: 145mm×200mm×112mm
Working dB (Sound Pressure Level)	<30dBA(working at 10cmH2O)
Parameter Setting
Pressure Range
Pressure (cmH2O)	4--20	4--20		-			-		-	-			-		-			-		-		-		-		-
Initial Pressure (cmH2O)	4--20	4--20		4--18			4--18		4--18	4--23			4--23		4--23			4--23		4--25		4--25		4--25		4--25
Max Pressure (cmH2O)	-	4--20		-			-		-	-			-		-			-		-		-		-		-
Min Pressure (cmH2O)	-	4--20		-			-		-	-			-		-			-		-		-		-		-
Inhalation Pressure (cmH2O)	-	-		4--20			4--20		4--20	4--25			4--25		4--25			4--25		4--30		4--30		4--30		4--30
Exhalation Pressure (cmH2O)	-	-		4--18			4--18		4--18	4--23			4--23		4--23			4--23		4--25		4--25		4--25		4--25
Max Inhalation Pressure (cmH2O)	-	-		-			4--18		-	-			4--25		-			-		-		4--30		-		-
Min Exhalation Pressure (cmH2O)	-	-		-			4--18		-	-			4--23		-			-		-		4--25		-		-
Max Support Pressure (cmH2O)	-	-		-			2--8		-	-			2--8		-			-		-		2--8		-		-
Inhalation Sensitivity (Auto, 1-6 level)	-	-		√			√		√	√			√		√			√		√		√		√		√
Exhalation Sensitivity (Auto, 1-6 level)	-	-		√			√		√	√			√		√			√		√		√		√		√
Pressure Rising Time (1-6 level)	-	-		√			√		√	√			√		√			√		√		√		√		√
Respiratory Rate (4-40bpm)	-	-		-			-		√	-			-		√			√		-		-		√		√
Inhalation Time (0.5-4s)	-	-		-			-		√	-			-		√			√		-		-		√		√
Max/Min Inhalation Time -4S	-	-		√			√		√	√			√		√			√		√		√		√		√
Min Inhalation Time (0.5-4s)	-	-		√			√		√	√			√		√			√		√		√		√		√
Volume Assurance Function(VAF)	-	-		-			-		-	√			√		√			√		√		√		√		√
Target VT (50-2000ml)	-	-		-			-		-	√			√		√			√		√		√		√		√
95th Titration	-	√		-			√		-	-			-		√			-		-		√		-		-
Ramp (Off,1-60 minutes)	√
Automatic On	√
Automatic Off	√
Parameter Monitor
Pressure Monitor	√
Airflow Monitor	√
VT Monitor	-	-										√
Liters Per Minute Monitor	-	-										√
Leakage Monitor	-	-										√
Respiratory Rate Monitor	-	-										√
Inhalation Time Monitor	-	-										√
AC Power Consumption (110V-240V)	√
Automatic Leakage Compensation	√
Automatic Altitude Compensation	√
Alert
Power Failure	√
Low Input Voltage	√
Airway Obstructed	√
High Leak	√
Humidifier Failure	√
TF Card Full	√
High Pressure	-	-	√		√	√		√			√			√		√			√		√		√		√
Low Pressure	-	-	√		√	√		√			√			√		√			√		√		√		√
Liters Per Minute is Low	-	-	√		√	√		√			√			√		√			√		√		√		√
Please Change Filter	-	-	√		√	√		√			√			√		√			√		√		√		√
Humidifier	√
Data Record
Data Transmit: TF Card	√
Statistics	√
Detailed Data	√
